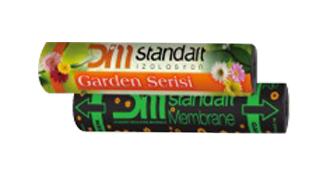

Sim Garden Armored Membrane
Standard GARDEN Series Membranes are the products specially designed for garden and terrace roof details. The most critical point in garden roofs and similar type insulation applications is the possibility that insulation cover can be damaged by plant roots.
GARDEN removes this possibility, keeps plant roots away from the insulation layer thanks to its special formula mixture.
It is produced in 1m wide and 10m long rolls.
GARDEN removes this possibility, keeps plant roots away from the insulation layer thanks to its special formula mixture.
It is produced in 1m wide and 10m long rolls.
Garden Armored Membrane is the bitumen water insulation cover developed to be used such places as garden terraces. It differs from other bitumen covers as it is produced with special formula mixture and contains film layer (metal-plastic compact carrier) blocking plant roots. Garden Armored Membrane does not let, thanks to its special formula mixture, most plant roots come closer to the insulation layer while constituting with the special film layer it contains a second safety shield against stronger plant roots. It is produced in 1m wide, 10m long and 3mm or 4mm thick rolls.
Elastomeric armored garden is produced from modified bitumen containing styrene butadiene styrene (SBS) while plastomeric armored garden is produced from modified bitumen containing atactic polypropylene (A.P.P.).
Elastomeric armored garden is produced from modified bitumen containing styrene butadiene styrene (SBS) while plastomeric armored garden is produced from modified bitumen containing atactic polypropylene (A.P.P.).
| Plastometrik | Eastomerik | ||||
|---|---|---|---|---|---|
| Specifications | Unit | SP 3000 Special Armored | SP 4000 Special Armored | SP 3000 Special Armored | SP 4000 |
| Outfit Type | Polyester + Special Armored Carrier | ||||
| Thickness | mm | 3 | 4 | 3 | 4 |
| Weight | Kg/m2 | 3,4 | 4,5 | 3,4 | 4,5 |
| Width | m | 1 | 1 | 1 | 1 |
| Length | m | 10 | 10 | 10 | 10 |
| Temperature Resistance (Minimum) | °C | 120 | 120 | 120 | 120 |
| Cold Bending | °C | -10 | -10 | -20 | -20 |
| Longitudinal Traction Resistance (Minimum) | N/5cm | 800 | 800 | 800 | 800 |
| Transverse Traction Resistance (Minimum) | N/5cm | 600 | 600 | 600 | 600 |
| Upper Coating | Polyethylene | Polyethylene | Polyethylene | Polyethylene | |
| Lower Coating | Polyethylene | Polyethylene | Polyethylene | Polyethylene | |
It is used for garden, garden terrace, garden balcony and over-the-car park garden applications. Besides, it is used for the water insulation of foundation and face walls in the foundations where external bundling is applied.
